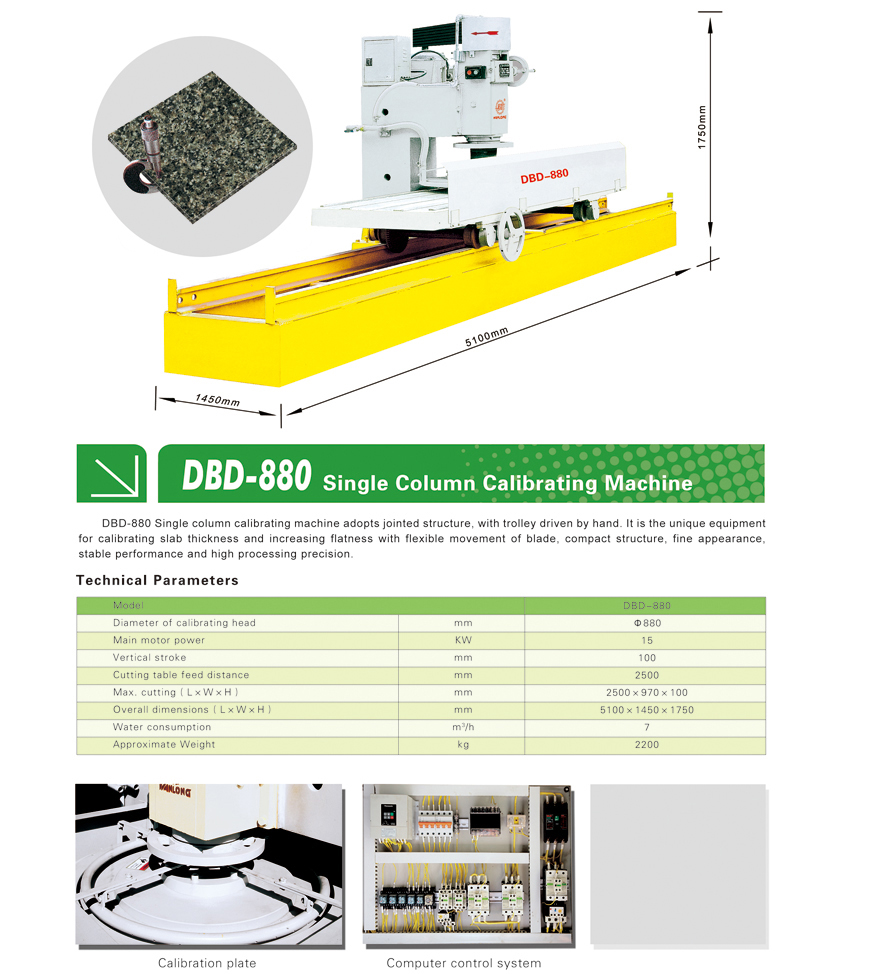

D8D-880 Single Column Calibrating Machine
Product Features：
DOD-880 Single column calibrating machine adopts jointed structure, with trolley driven by hand It is the unique equipmenl for calibrating slab thickness and increasing flatness with flexible movement of blade, compact structure, fine appearance,stable performance and high processing precision
| D8D-880 | ||
|---|---|---|
| Diameter of calibrating head | mm | 880 |
| Vertical stroke | mm | 100 |
| Cutting table feed distance | mm | 2500 |
| Mex. cutting(L x W x H) | mm | 2500*970*100 |
| Overall dimensions (L x W x H) | mm | 5100*1450*1750 |
| Main motor power | KW | 15 |
| Water consumption | m³ | 7 |
| Approximate Weight | Kg | 2200 |
