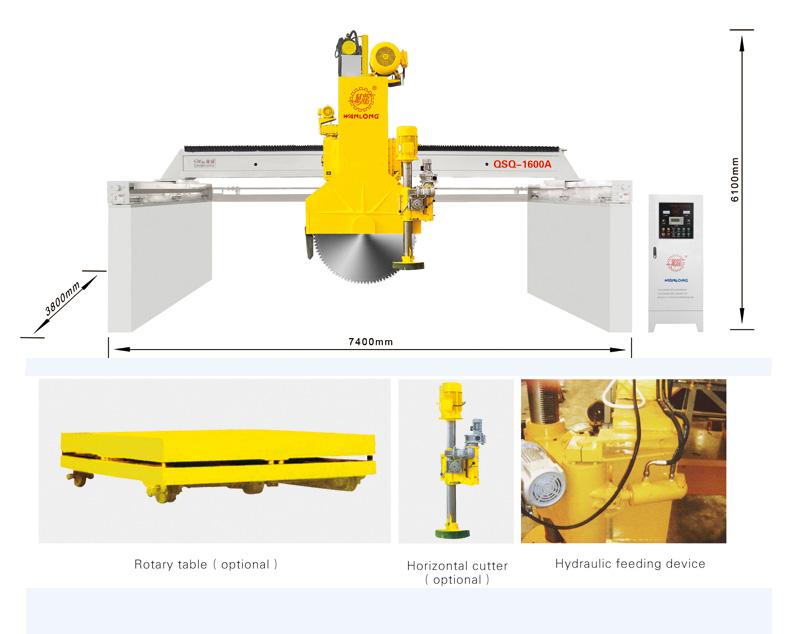

QSQ-1200A/1600A Vertical Plus Horizontal Cutting Machine
Product Features：
QSQ-1200A 1600A has vertical and horizontal blade working on the same machine It is designed as per the understanding of processing marble or granite block into slabs and tiles Strong motor power,heavy-duty steel body, and user-friendly operation system as well as easy-to- maintain of machine that is an ideal machine for choice
| QSQ-1200 | QSQ-1600 | ||
|---|---|---|---|
| Max. diameter of blade | mm | 1200 | 1600 |
| Max. No. of blades | pc | 1 | 1 |
| Main motor power | KW | 45/55 | 45/55 |
| Max. vertical stroke | mm | 1350 | 1350 |
| Crossbeam length | mm | 7400 | 6500 |
| Max. cutting size ( L x W x H) | mm | 3200*1800*950 | 3000*1800*1100 |
| Diameter of horizontal blade | mm | 400-600 | 400-600 |
| Main motor power for horizontal blade | KW | 11 | 11 |
| Vertical stroke of horizontal cutting column | mm | 850 | 850 |
| Dimensions (L x W x H ) | mm | 7400*3800*6100 | 7400*3800*56100 |
| Water consumption | m³/h | 6 | 6 |
| Approximate weight | Kg | 9000 | 9500 |
