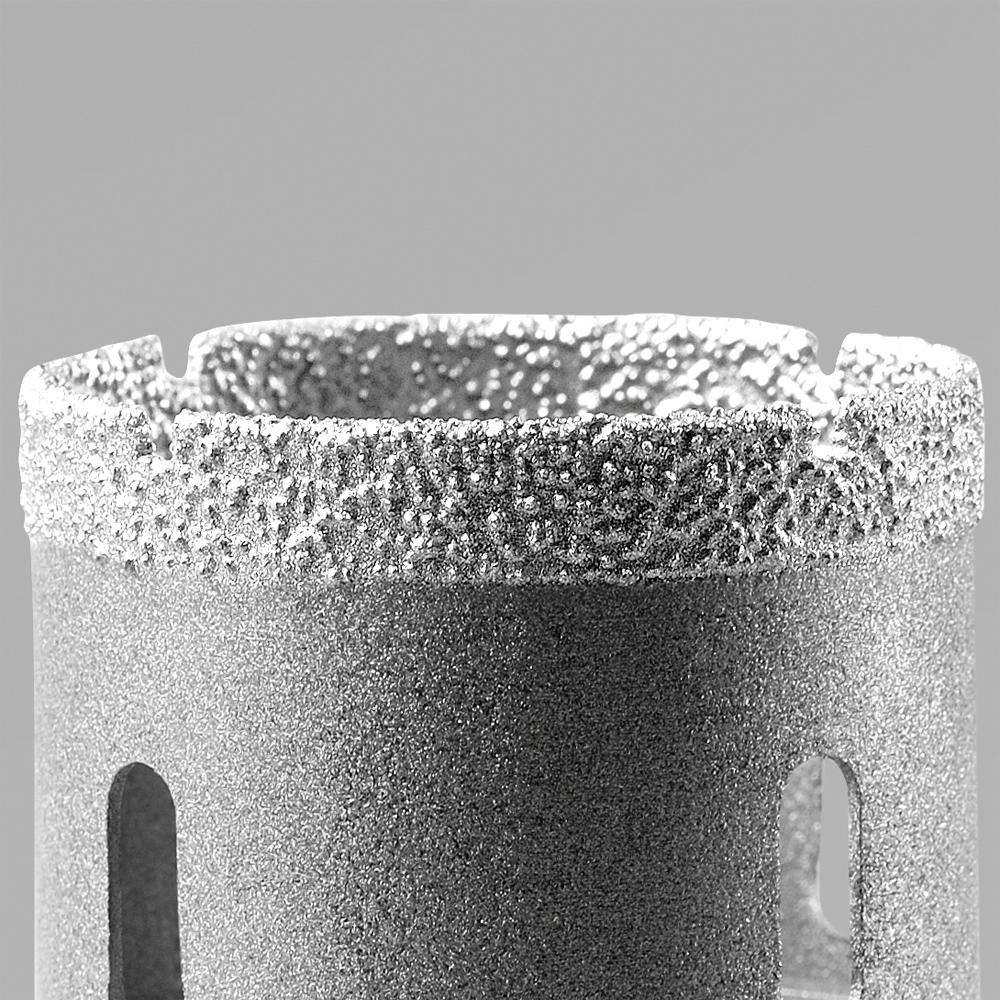

Vacuum Brazed Wet Core Drill Bit
Product Features：
Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;
Features and Application
1. Excellent cutting speed with a long cutting life compared to electroplated core bits;
2. Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;
3. Could be used wet with cooling slots design for easier core removal when stuck.
Other specifieations available upon request
1. Excellent cutting speed with a long cutting life compared to electroplated core bits;
2. Ideal for marble and limestone drilling, can perform on granite, tiles, porcelain, concrete and more;
3. Could be used wet with cooling slots design for easier core removal when stuck.
| Diameter(Inch/mm) | Segment Height(mm) | Usable Length(mm) | Connection |
|---|---|---|---|
| 1/4"/6.3 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 3/8"/9.5 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1/2"/12.7 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 5/8"/15.9 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 3/4"/19.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1"/25.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-1/8"/29.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-1/4"/32.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-3/8"/35.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-1/2"/38.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-5/8"/41.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 1-3/4"/45.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 2"/51.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 2-1/4"/57.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 2-1/2"/63.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 2-3/4"/70.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 3"/76.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 3-1/2"/90.0 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
| 4"/100 | 8.0-10.0 | 35/50/60 | shank/M14/5-8"-11/G/1/2" |
